Kewtech EZYPAT Plus PAT Tester

  • Executes 110V/230V load and run testing on handheld appliances
  • A battery-powered PAT tester with comprehensive testing capabilities
  • 250V insulation test for surge-protected extension leads

£395.00 EXC. VAT

IN STOCK

Description

The Kewtech EZYPAT Plus PAT Tester stands out thanks to its ability to perform load and run testing for 110V and 230V appliances despite being a battery-powered tester. It is also capable of 200mA continuity testing, 250V & 500V insulation testing, substitute leakage measurement and polarity checking. The load and run testing function is particularly useful for checking handheld appliances whether they run off a 230V or 110V supply. It is especially noteworthy on a battery-powered tester as it allows the user to perform this important test without needing a separate mains supply.

The 200mA test current for earth bond is IT safe and can be extended to a 5s duration if required. The Kewtech EZYPAT Plus’s lower 250V test voltage for insulation testing also allows assessment of surge-protected extension leads whilst a nulling function cancels out test lead resistance for greater accuracy.

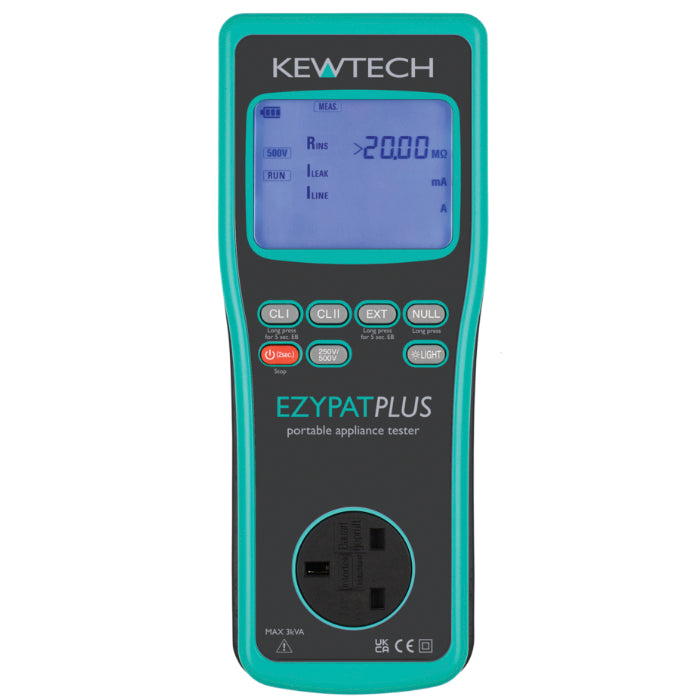

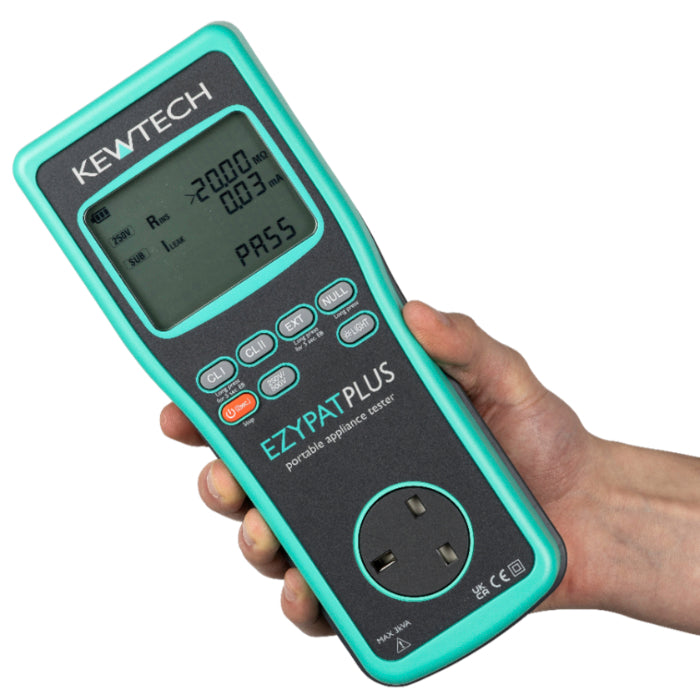

The Kewtech EZYPAT has a clear LCD display that shows digital readings from tests alongside a PASS/FAIL indication. The screen flashes red to indicate a failed test and green to indicate a passed test so results are immediately apparent. The automatic test sequences for Class I and Class II appliances and extension leads each have an individual button so the user simply needs to identify the appliance type, connect it, and then push a button to perform a complete PAT test.

A full set of accessories including an extension lead adaptor, earth bond test lead, crocodile clip and test probe are supplied with the Kewtech EZYPAT Plus alongside a useful carry case. The compact nature of the PAT tester makes it easy to store and transport whilst the rechargeable battery will last for roughly 140 tests.

Kewtech part number: EZYPAT PLUS

Key Features

  • 200mA earth bond continuity test
  • Insulation resistance test: 250V and 500V
  • Battery-powered PAT tester
  • 110V and 230V load/run testing
  • Red/green screen indicates PASS/FAIL
  • Automatic test sequence
  • Class I, Class II, extension leads
  EZYPAT EZYPAT Plus SMARTPAT
200mA continuity test
250V Insulation Test
500V Insulation Test
Substitute Leakage Measurement
Polarity Check
110V Load and Run Test
230V Load and Run Test
Portable RCD Test
Compatible with KEWPAT App
Customisable Test Sequences

Specification

Protective Conductor Resistance

  • Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
  • Over-range indication: > 20.00 Ω
  • Resolution: 0.01Ω
  • Open-circuit voltage: 5 V ±0.4 V DC
  • Measuring current: 200 mA DC (nominal value)
  • Accuracy: ±3%rdg ±5dgt

Mains Voltage

  • Display range: 30 - 270 V
  • Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
  • Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

  • Rated voltage: 250V; 500V
  • Measuring range: 0.00 - 20.00 MΩ
  • Over-range indication: > 20.00 MΩ
  • Resolution: 0.01 MΩ
  • No-load voltage: 250 V DC +20%, -0% 500 V DC +20%, -0%
  • Short-circuit current: 1.5 mA DC or less
  • Rated current: 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
  • Accuracy: ±2%rdg±3dgt

Substitute Leakage

  • Measuring range: 0.10 - 12.00 mA rms
  • Over-range indication: > 12.00 mA
  • Resolution: 0.01mA
  • Open-circuit voltage/ Freq.: 30 V ±5 V rms / 50 Hz ±5%
  • Measuring current: 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
  • Accuracy: ±3%rdg±5dgt

Insulation Test between L and N

  • Open-circuit voltage: 4.5 V ±0.5 V DC
  • Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

  • Mains voltage range: 100 - 253 V / 50 Hz
  • Measuring range: 0.10 - 13.00 A rms / 0.10 - 20.00 mA rms
  • Display range: 0.00 - 13.00 A / 0.00 - 20.00 mA
  • Over-range indication: > 13.00 A / > 20.00 mA
  • Resolution: 0.01A / 0.01mA
  • Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
  • Max. rating: 3 kVA max., 15 sec. cont. / -

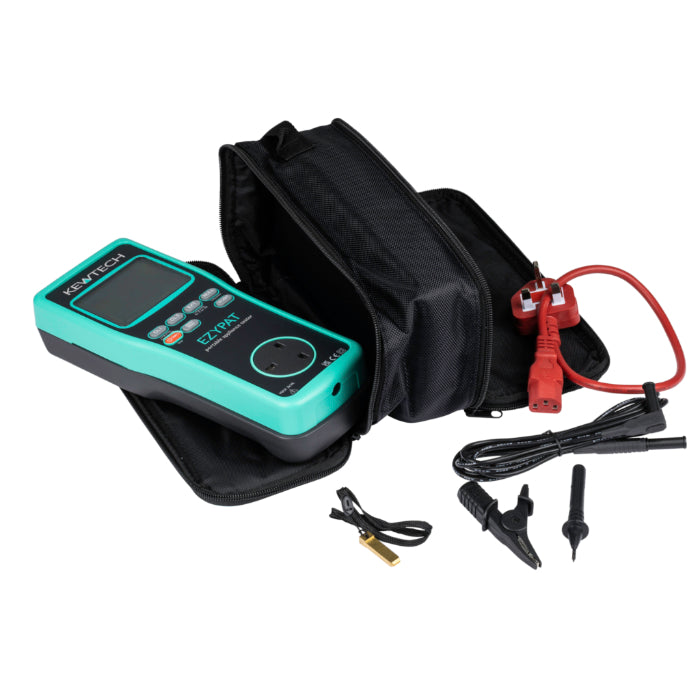

Supplied Accessories

The Kewtech EZYPAT Plus PAT Tester comes with:
  • Kewtech EZYPAT Plus PAT Tester
  • Mains leads
  • Earth lead with probe and croc clip
  • Extension lead adapter
  • Carry bag with strap
  • Quickstart manual
  • End of line Cal Cert
