Kewtech KT72 PAT Tester

  • Auto test sequences facilitate easier testing
  • Completely powered by rechargeable batteries
  • Tests IT equipment using a low current earth bond test

£275.00 EXC. VAT

IN STOCK

Description

The Kewtech KT72 PAT Tester offers the same testing capabilities as the KT71 but with the added versatility of being a battery powered unit, allowing appliance testing to be carried out in more confined locations.

Use the rotary switch on the front of the Kewtech KT72 portable appliance tester to quickly select between testing Class I, Class II or IEC Leads. Red and Green LEDs will give indication of whether the appliance has Passed or Failed the electrical safety test. In addition an Amber LED will flash to indicate a Pass for appliances with long mains leads or for long IEC/Extension leads. The test reading is clearly displayed on the KT72 display, providing the necessary data for completing a PAT certificate.

The handheld Kewtech KT72 PAT tester is ideal for low volume appliance testing in accordance with the IEE Code of Practice making it suitable for an in-house PAT testing regime. Quickly and accurately test office electrical and IT equipment as well as assets found in domestic environments.

Key Features

  • Quick & simple operation via large rotary switch
  • Clear Pass/Fail indication and test readings
  • Low current earth bond test for IT equipment
  • Handheld, lightweight and battery powered
  • Perfect for entry-level and low volume users

Specification

  • Earth Bond Continuity: Test currents of 200mA DC Measuring range: 0 - 15.00 ohms
  • Insulation Test: 250V or 500V DC Measuring range: 0.1 - 19.99 Mohms
  • Substitute Leakage: 40V - 0.1mA to 12.00A rms
  • Polarity Test: Continuity < 10ohms (on Extension Lead Test only)
  • Weight & Dimensions Unit without leads: 1.0kg - With leads 1.5kg - 180 x 160 x 90mm

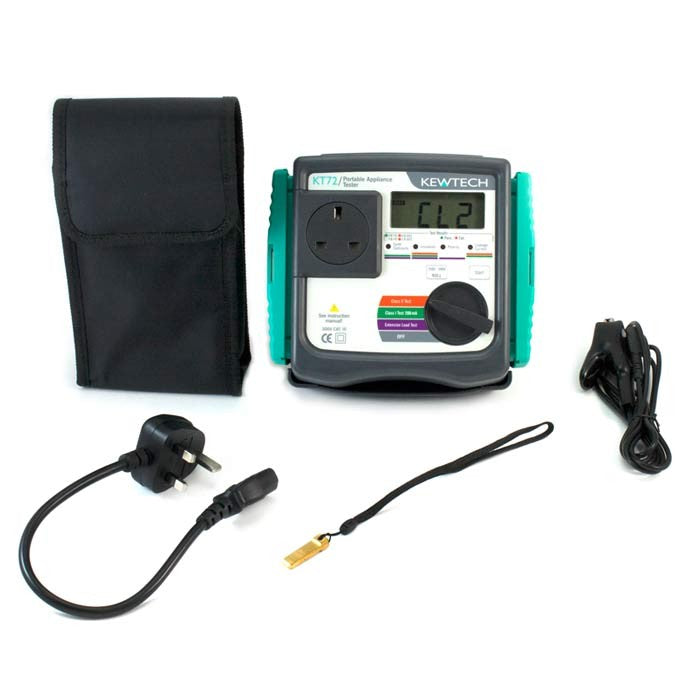

Supplied Accessories

The Kewtech KT72 comes with:
  • 8 x AA Batteries
  • Earth Test Lead with Crocodile Clip
  • 230V Extension Lead Adaptor
  • Instruction Manual
  • Calibration Certificate
  • 24 Month Warranty

Kit Options

The Kewtech KT72 PAT Tester comes in a range of different kits:

Kit A Kit B Kit C Kit D
Kewtech KT72
Microwave Leakage Detector
Microwave Emissions Labels
PAT Certificate Pad
PAT Register Book w/ Frequency of Inspection
IEC Clover Leaf Adaptor
Kewtech KT103 Socket Tester
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels
250 Tuff Tag Cable Labels
Earth Test Lead
230V Extension Lead Adaptor
Calibration Certificate
Instruction Leaflet
SimplyPATs Version 7 Software
110V Appliance Adaptor
110V Extension Lead Adaptor
Kewtech Universal PAT Carry Case
8 x AA Batteries
