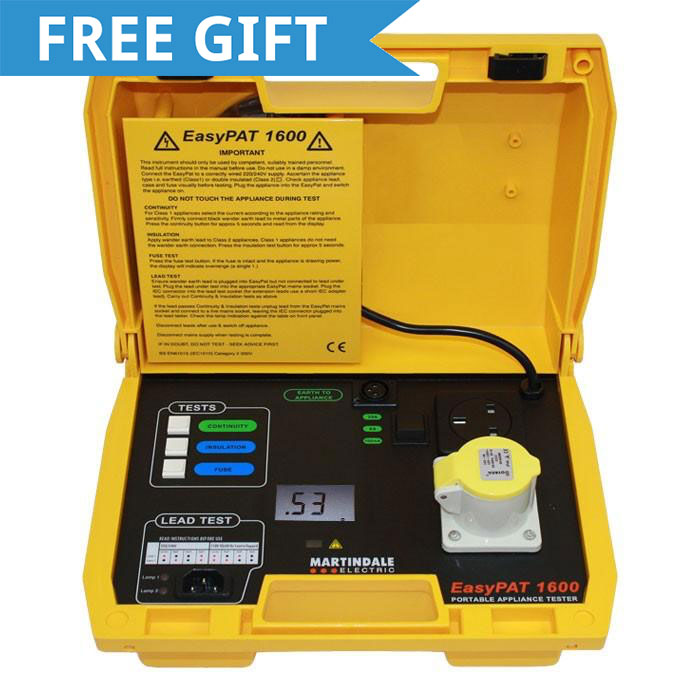

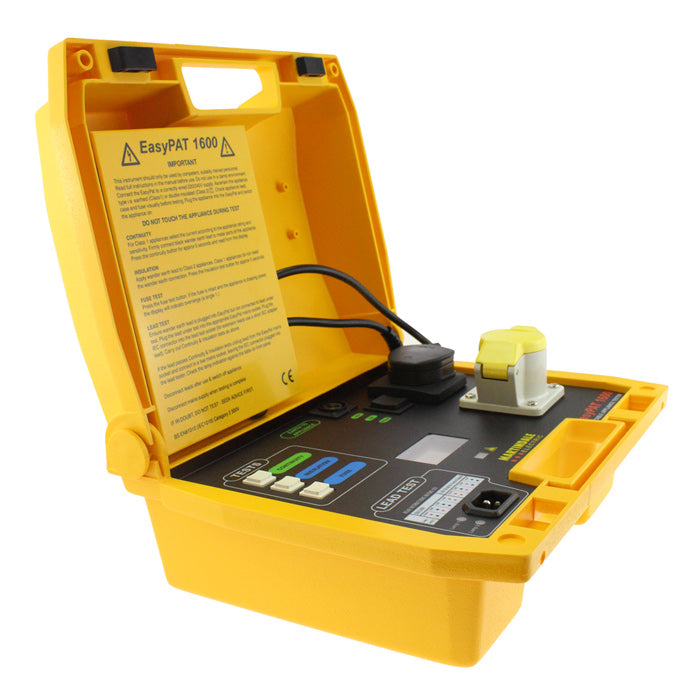

Martindale EasyPAT 1600 PAT Tester

  • One button PAT testing at both 110V and 230V
  • Low current 100mA earth bond test is suited to IT testing
  • Protected by strong briefcase-style housing

£449.00 EXC. VAT

IN STOCK

Description

The Martindale EasyPAT 1600 is the perfect portable appliance tester for low cost, quick and simple PAT testing. This dual voltage PAT tester meets the minimum legal requirements for electrical safety testing and is one of the only testers in its class that can be used on both 230V and 110V equipment.

The EasyPAT 1600 tests at three different currents, making it perfect for use on a range of appliances including sensitive IT office equipment and IEC/extension leads. Supplied within a briefcase-style, rugged housing the Martindale 1600 PAT tester is a hardwearing instrument that is easily carried between test sites.

The Martindale EasyPAT 1600 is perfectly suited to portable appliance testing in offices, shops and schools as well as workshops and hire shops.

Key Features

  • Tests at either 230V or 110V depending on supply voltage
  • 100mA earth bond test for sensitive IT equipment
  • Supplied with 230V extension lead adaptor to test IEC leads
  • Quick and simple one button operation
  • Strong protective briefcase-style housing

Specification

  • Earth Test: Test currents of 100mA DC (ideal for IT equipment), 8 amps or 25 amps AC
  • Display measuring range: 0-1.99 ohms
  • Insulation Test: Carried out at 500V DC, Measuring range 0-19.9 Mohms
  • Fuse Test: 0-13Amps
  • 230V IEC and extension lead tester (built into the EasyPAT)
  • Weight & Safety Packed: 4kg, LVD meets BS EN 61010-1

Supplied Accessories

The Martindale EasyPAT 1600 comes with

  • FREE 500 Pass Labels
  • FREE 200 Fail Labels
  • Earth bond test lead
  • 230V IEC Adaptor
  • Certificate of Conformity
  • Instruction Manual
  • 12 Month Warranty

Kit Options

The Martindale EasyPAT 1600 PAT Tester is available in a range of kits:

Kit A Kit B Kit C Kit D
Martindale EasyPAT 1600 PAT Tester
Microwave Leakage Detector
150 Microwave Emissions Labels
PAT Certificate Pad
PAT Register Book w/ Frequency of Inspection
IEC Clover Leaf Adaptor
Martindale CP501 Check Plug
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels
250 Tuff Tag Cable Labels
Earth Bond Test Lead
Certificate of Conformity
230V IEC Adaptor
SimplyPATs Version 7 Software
