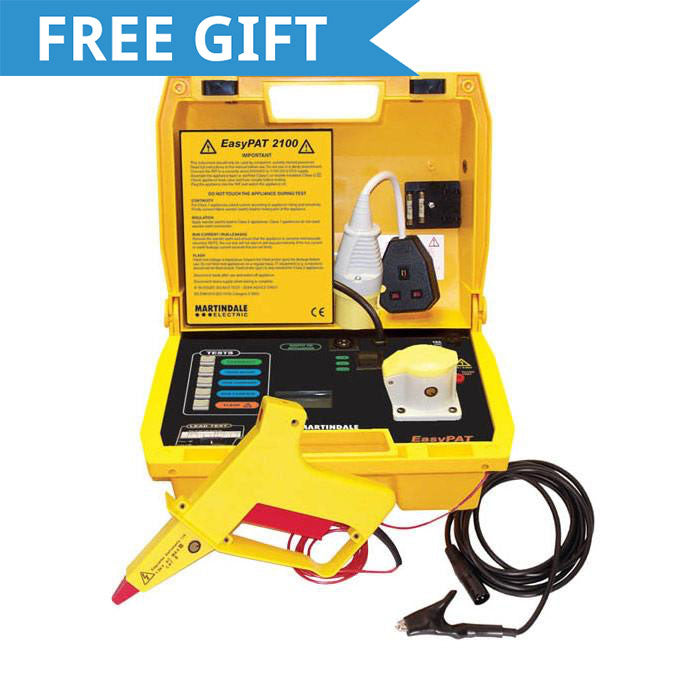

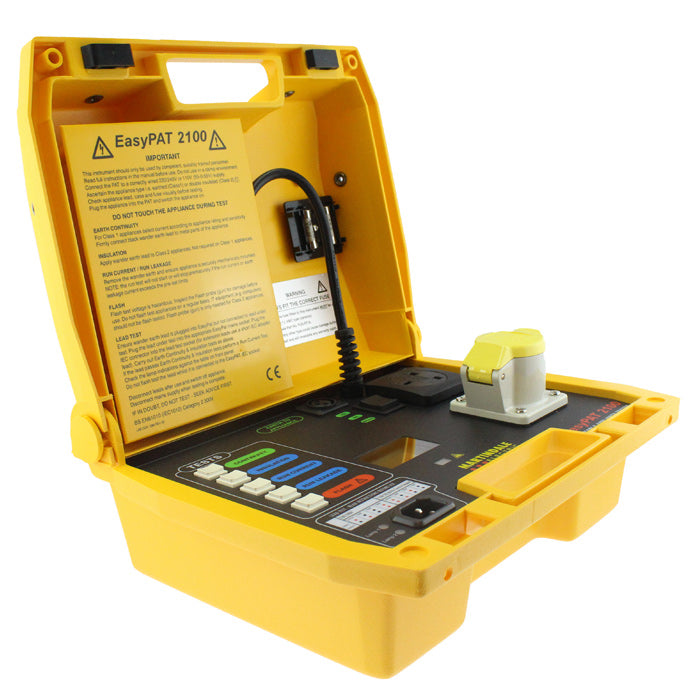

Martindale EasyPAT 2100 PAT Tester
- Flash, run current and run leakage test functions
- Compatible with both 230V and 110V appliances
- Suited to use in construction sites, hire & repair shops and on production lines
The Martindale EasyPAT 2100 portable appliance tester is a high speed, manual PAT tester capable of testing 230V domestic and 110V industrial equipment. This dual voltage appliance tester performs five tests including run current, run leakage and flash testing, making it an ideal instrument for production line and repair testing.
The straightforward operation and easy to read display offer improved productivity and a more effective PAT testing process for professional on-site operation. Supplied within a briefcase-style, rugged housing the Martindale 2100 PAT tester is a hardwearing instrument that is easily carried between test sites.
The Martindale EPAT 2100 portable appliance testers is perfect for use in domestic and commercial environments as well as on production lines, repair shops, construction sites and equipment hire shops.
Key Features
- Fast and efficient PAT testing of both 230V and 110V appliances
- Simple one button operation
- Flash test using pistol probe
- Performs a 100mA earth bond test
- Built-in extension/IEC lead tester
- Ideal for construction sites, hire shops, production lines and repair companies
- Strong protective briefcase-style housing
Earth Continuity Test (100mA)
- Test Voltage: 130mV DC nominal open circuit
- Test Current: 100mA DC nominal constant current
- Range: 0 - 1.99O
- Accuracy of Indication: ±10% of reading ±2 digit
Earth Continuity Test (8A & 25A)
- Test Voltage: 6V AC nominal with no load
- Test Current: 25A AC nom @ 0.1O (25A)
- 8A AC nom @ 0.1O (8A)
- Display Range: 0 - 1.99O
- Accuracy of Indication: ±10% of reading ±2 digits
Insulation Test
- Test Voltage: 500V DC -0% +20% at 0.5MO
- Short Circuit Current: 1.5mA DC nominal
- Display Range: 0 - 19.9MO
- Accuracy Of Indication: ±5% ±1 digit of reading
Run Current Test
- Display Range: 0 - 19.9A
- Usable Range: 0 - 13.0A (Dependent on mains plug fuse)
- Accuracy of Indication: ±10% of reading ±1 digit
Run Leakage Test
- Display Range: 0 - 19.9mA AC
- Accuracy of Indication: ±10% of reading ±1 digit
Flash Test
- 1.5kV AC for Class 1
- 3kV AC for Class II
General
- Size: 330x263x144mm (Excluding bag)
- Material: ABS/Polycarbonate
- Colour: Yellow/Clear
- Weight: 5.25kg nominal
- Supply Voltage: 110V/230V±10% 50/60Hz
- Power Consumption: 10/220VA (excluding run)

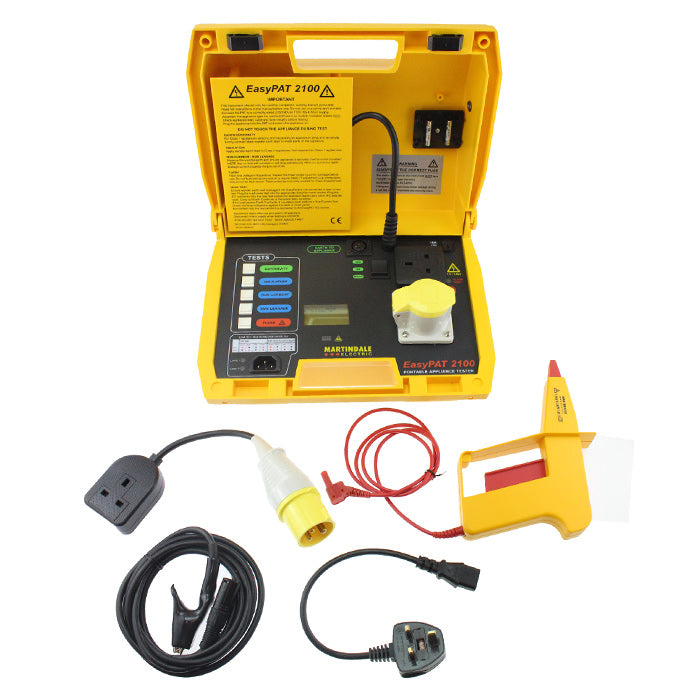

The Martindale EasyPAT 2100 comes with:
- Flash test pistol probe
- Earth bond test lead
- 110V Adaptor
- 230V IEC Adaptor
- Spare Fuses
- Instruction Manual
- 12 Month Warranty
- Carry Case for Accessories
The Martindale EasyPAT 2100 PAT Tester is available in a range of kits:
- Martindale EasyPAT 2100 Kit A
- Martindale EasyPAT 2100 Kit B
- Martindale EasyPAT 2100 Kit C
- Martindale EasyPAT 2100 Kit D
| Kit A | Kit B | Kit C | Kit D | |
|---|---|---|---|---|
| Martindale EasyPAT 2100 PAT Tester | ✔ | ✔ | ✔ | ✔ |
| Microwave Leakage Detector | ✔ | ✔ | ||
| 150 Microwave Emissions Labels | ✔ | ✔ | ||
| PAT Certificate Pad | ✔ | ✔ | ||
| PAT Register Book w/ Frequency of Inspection | ✔ | ✔ | ✔ | |
| IEC Clover Leaf Adaptor | ✔ | ✔ | ✔ | |
| Martindale CP501 Check Plug | ✔ | ✔ | ✔ | |
| 1000 Pass Labels | ✔ | ✔ | ✔ | ✔ |
| 200 Fail Labels | ✔ | ✔ | ✔ | ✔ |
| 250 PassWrap Cable Labels | ✔ | ✔ | ✔ | ✔ |
| 250 Tuff Tag Cable Labels | ✔ | ✔ | ||
| Earth Bond Test Lead | ✔ | ✔ | ✔ | ✔ |
| Flash Test Pistol | ✔ | ✔ | ✔ | ✔ |
| 230V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ |
| 110V Adaptor | ✔ | ✔ | ✔ | ✔ |
| Spare Fuse | ✔ | ✔ | ✔ | ✔ |
| PAT Accessories Carry Case | ✔ | ✔ | ✔ | ✔ |
