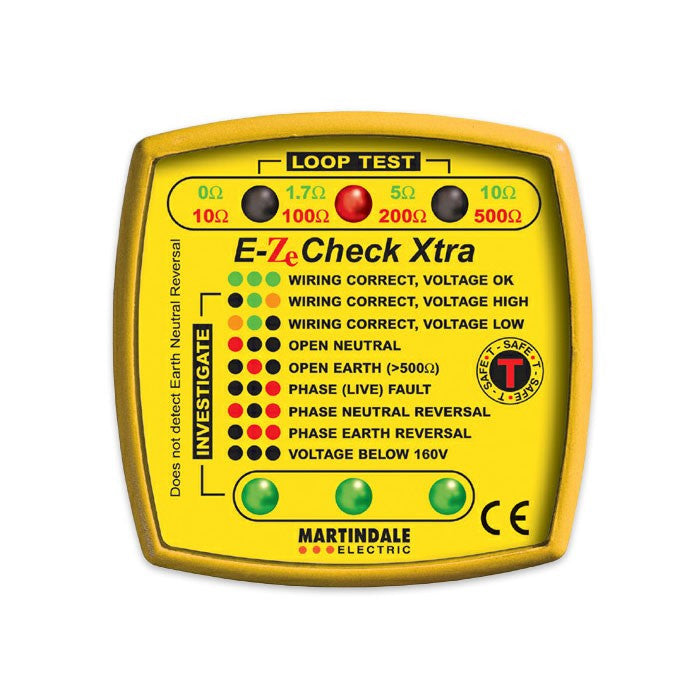

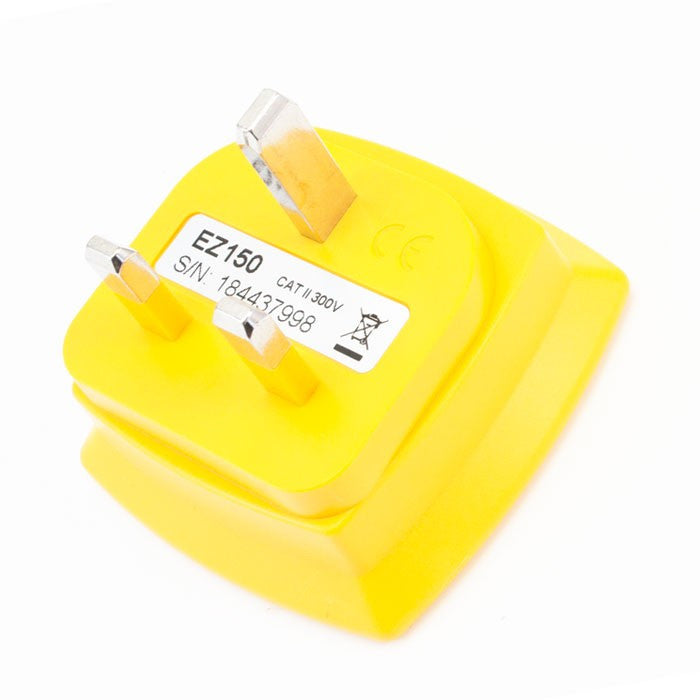

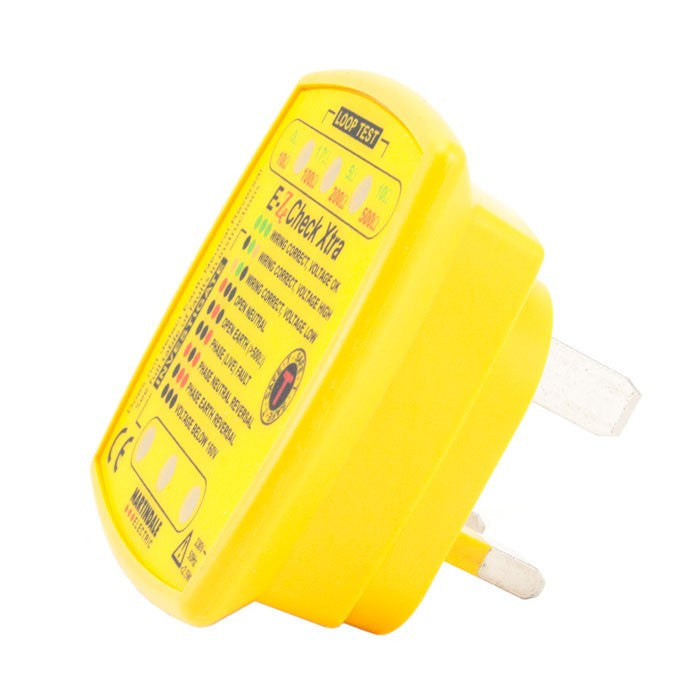

Martindale EZ150 Socket Tester

  • Measures earth loop impedance without tripping RCDs
  • Fault indication through LED display
  • Compatible for tests on 13A UK wall sockets

£41.00 EXC. VAT

IN STOCK

Description

The Martindale EZ150 is an advanced socket tester capable of measuring earth loop impedance to offer an indication of how safe the earth is and whether the earth resistance is within acceptable levels. The E-Ze Check Xtra is the first socket checker to provide an actual loop test value.

The Martindale E-Ze Check Xtra also performs a voltage test and checks that the socket is correctly wired.

Specification

  • Nominal Operating Voltage: 230V
  • Frequency: 50Hz
  • Non-trip Earth Loop Ranges: 0-1.7Ω, 1.7-5Ω, 5-10Ω, 10-100Ω, 100-200Ω, 200-500Ω
  • Voltage Low Indication: <195V
  • Voltage High Indication: >270V
  • Open Earth Indication: >500
  • Power Consumption: <1.6W
  • Overvoltage: CAT II/300V

The Martindale EZ150 is an advanced socket tester capable of measuring earth loop impedance to offer an indication of how safe the earth is and whether the earth resistance is within acceptable levels. The E-Ze Check Xtra is the first socket checker to provide an actual loop test value.

The Martindale E-Ze Check Xtra also performs a voltage test and checks that the socket is correctly wired.

  • Nominal Operating Voltage: 230V
  • Frequency: 50Hz
  • Non-trip Earth Loop Ranges: 0-1.7Ω, 1.7-5Ω, 5-10Ω, 10-100Ω, 100-200Ω, 200-500Ω
  • Voltage Low Indication: <195V
  • Voltage High Indication: >270V
  • Open Earth Indication: >500
  • Power Consumption: <1.6W
  • Overvoltage: CAT II/300V
