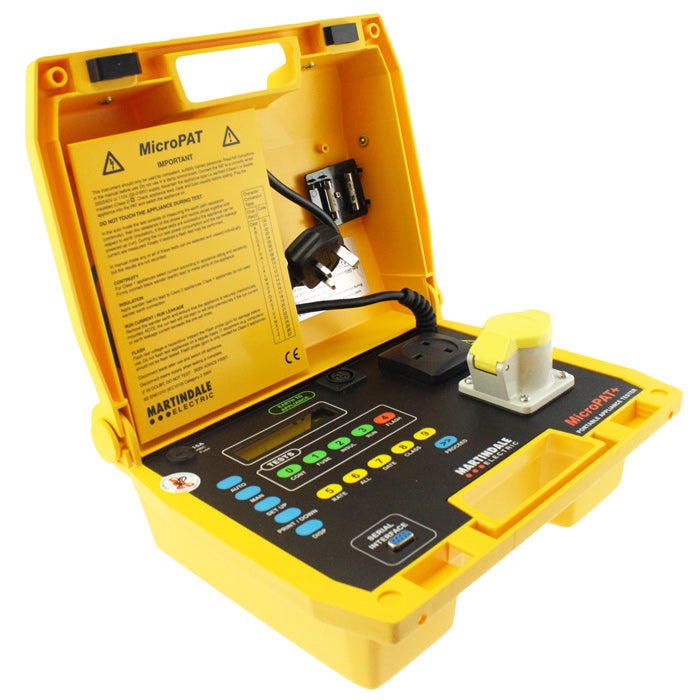

Martindale MicroPAT + PAT Tester

  • Internal memory capacity for 1250 test results, downloadable with software
  • Multiple test including flash, run current and earth leakage
  • Compatible with accessories such as PAT label printer and barcode scanner

£575.00 EXC. VAT

IN STOCK

Description

The Martindale MicroPAT Plus is a dual voltage portable appliance tester offers a complete range of PAT tests as well as earth leakage, run current and flash tests. In addition the MicroPAT+ provides an onboard memory for result storage and the ability to download these results using optional PAT software.

Capable of rapidly performing electrical safety testing on both 230V and 110V appliances, the Martindale Micro PAT tester provides simple test sequence selection with one button, one test operation making it ideal for PAT engineers and electricians of all levels.

The downloading MicroPAT Plus is one of the fastest portable appliance testers on the market today, performing testing on tools, appliances and IT equipment in accordance with IEE recommendations.

Key Features

  • Test both 230V and 110V appliances depending on supply voltage
  • Memory storage for up to 1250 tests
  • Download results to a PC or PAT label printer
  • Fully compliant with all current regulations
  • Performs a flash test with supplied pistol probe
  • Can be connected to a barcode scanner for more efficient PAT testing

Specification

Earth Continuity Test

  • Test Voltage: 6V AC nominal with no load.
  • Test Current: 25A AC nominal with 0.1O load.
  • (at 240V AC) 10A AC nominal with 0.5O load.
  • 100mA (soft test) for IT equipment.
  • Display Range: 0 to 1.99O.
  • Accuracy: ±10% ± 1 digit.

Insulation Test

  • Test Voltage: 500V DC - 0% + 20%.
  • Short Circuit Current: 1mA DC nominal.
  • Display Range: 0 to 19.9M½.
  • Accuracy: ±5% ±1 digit.

Run Test

  • Display Range: 0 to 3.1kVA.
  • Accuracy: ±10% ±1 digit at nominal 240V.

Earth Leakage Test

  • Display Range: 0 to 6mA AC.
  • Accuracy: ±10% ±1 digit.

Test

  • Test Voltage: 1.5kV AC - Class I
  • (at nom 240V AC) 3kV AC - Class II
  • Display Range: 0 to 3.0mA AC.
  • Accuracy: ±5% ±1 digit.

Case

  • Size: 330x263x144mm (Excluding bag)
  • Material: ABS/Polycarbonate
  • Colour: Yellow/Clear
  • Weight: 5.25kg nominal

Supplied Accessories

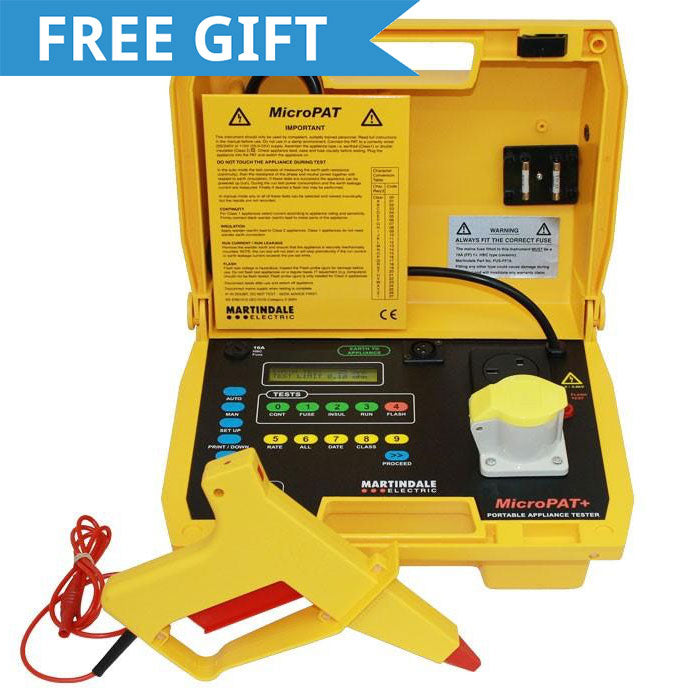

The Martindale MicroPAT+ comes with:

  • Earth bond test lead
  • Flash test pistol probe
  • 110V Adaptor
  • 230V IEC Adaptor
  • Spare Fuses
  • Instruction Manual
  • 12 Month Warranty
  • Carry Case for Accessories

Kit Options

The Martindale MicroPAT+ PAT Tester is available in a range of kits:

Kit A Kit B PAT n’ GO
Martindale MicroPAT Plus
LTDV Adaptor
SimplyPATs Version 7 Software
MARPAT Suite Software
2 x 500 PASS Labels
200 Fail Labels
250 Tuff Tag Pass Labels
250 PassWrap Labels
Martindale CP501 Socket Tester
IEC Cloverleaf Adaptor
110V Appliance Adaptor
IEC Adaptor Kit
TL125 Download Lead
