Megger PAT150R Kit B

  • Rechargeable Megger PAT150R with 250V and 500V insulation testing
  • Test power tools and construction equipment using 110V adaptors
  • Maintain accurate, detailed records using register book and certificate pad

£499.00 EXC. VAT

IN STOCK

Description

Limited Lifetime Warranty

Megger PAT150R Kit B is a useful kit for the Megger PAT150R Rechargeable PAT Tester which has insulation testing capability with either 250V or 500V test voltages. It can carry out PAT testing on Class I and Class II appliances, extension leads and power cables.

When purchasing Kit B, it is possible to test 110V appliances such as power tools thanks to the 110V adaptors supplied in the kit. Extension lead testing is enabled by an IEC cloverleaf adaptor whilst the Megger MST210 socket tester can be used to verify wall sockets.

The user can keep a physical record of all tests using Kit B’s PAT register book and PAT certificate pad whilst a useful Megger PAT Training DVD helps refresh the user’s memory when coming back to PAT testing after a while away. A full complement of labels, including Tuff Tag outdoor cable tags, are supplied as standard.

*This product qualifies for our exclusive Limited Lifetime Warranty. For more information please click here.

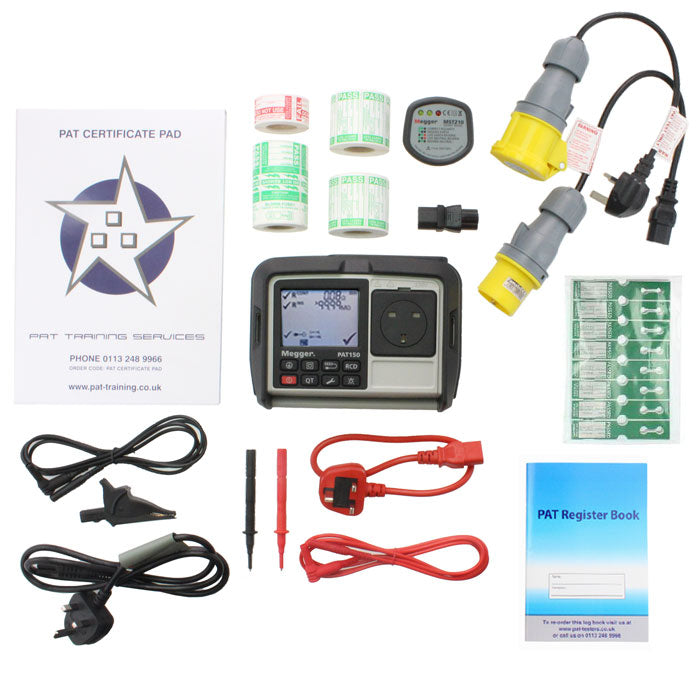

Megger PAT150R Kit B Includes:

  • Megger PAT150R PAT Tester
  • 2 x 500 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Labels
  • 250 Tuff Tag Pass Labels
  • PAT Certificate Pad
  • PAT Register Book
  • IEC Cloverleaf Adaptor
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Megger MST210 Socket Tester
  • Megger PAT Training DVD

For more information on the Megger PAT150R PAT Tester please click here.

Kit A Kit B Kit C
Megger PAT150R PAT Tester
SimplyPATs Version 7 Manual Software
2 x 500 Pass Labels
200 Fail Labels
250 PassWrap Labels
PAT Register Book
PAT Certificate Pad
IEC Cloverleaf Adaptor
IEC Adaptor Kit
110V Appliance Adaptor
110V Extension Lead Adaptor
Microwave Leakage Detector
150 Microwave Emission Labels
Megger MST210 Socket Tester
Megger PAT Training DVD

Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Touch Current Test

  • Test voltage: Nominal mains 230 V ac
  • Test frequency: Nominal mains 50 Hz
  • Test accuracy: ± 5% ± 3 digits
  • Resolution: 0.01 mA
  • Display range: 0.10 to 3.99 mA
  • Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

  • Test voltage: 0 to 300 V ac
  • Measurement accuracy: ± 3% ± 3 digits
  • Resolution: 0.1 V ac
  • Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

  • Test voltage: 5V
  • Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

  • Test voltage: Nominal mains 230 V
  • Test frequency: 50Hz
  • Test current accuracy: +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ± 1ms
  • Trip time resolution: 0.01ms
  • Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

  • Frequency measurement range: 50 Hz
  • Test voltage: 40 to 300V ac
  • Accuracy: ± 3% ± 3 digits
  • Resolution: 0.1Vac
  • Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

  • Test voltage: 5V
  • Test frequency: Nominal Mains 50 Hz
  • Test current: < 100mA short circuit

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT150 Only): 1300g
  • Weight (Shipping): 2795g / 2975g for PAT150R
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-064 / 1003-428 (rechargeable model)

Supplied Accessories

Megger PAT150R Kit B comes with:

  • Megger PAT150R PAT Tester
  • 2 x 500 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Labels
  • 250 Tuff Tag Pass Labels
  • PAT Certificate Pad
  • PAT Register Book
  • IEC Cloverleaf Adaptor
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Megger MST210 Socket Tester
  • Megger PAT Training DVD
