Megger PAT150R Kit C

  • Includes rechargeable Megger PAT150R, capable of RCD testing
  • 110V appliance adaptor, 110V extension lead adaptor, IEC adaptor kit
  • SimplyPATs Version 7 Manual Software facilitates reporting and storage of results

£559.00 EXC. VAT

IN STOCK

Description

Limited Lifetime Warranty

Megger PAT150R Kit C provides a comprehensive PAT testing solution based around the popular rechargeable Megger PAT150R PAT Tester. The tester itself has two different test voltages for insulation testing and is also capable of portable RCD testing and substitute leakage measurement

Adaptors are included for 110V appliances and 110V extension leads and an IEC adaptor kit allows testing of 230V extension leads. A socket tester and microwave leakage detector allow further tests on wall sockets and microwave radiation.

The user can keep a digital copy of all results using SimplyPATs Version 7 Manual software which is also useful for reporting and analysing tests. A physical record can be kept in the PAT certificate pad and PAT register book provided. Several rolls of labels are provided to help the user get started with his/her new tester.

*This product qualifies for our exclusive Limited Lifetime Warranty. For more information please click here.

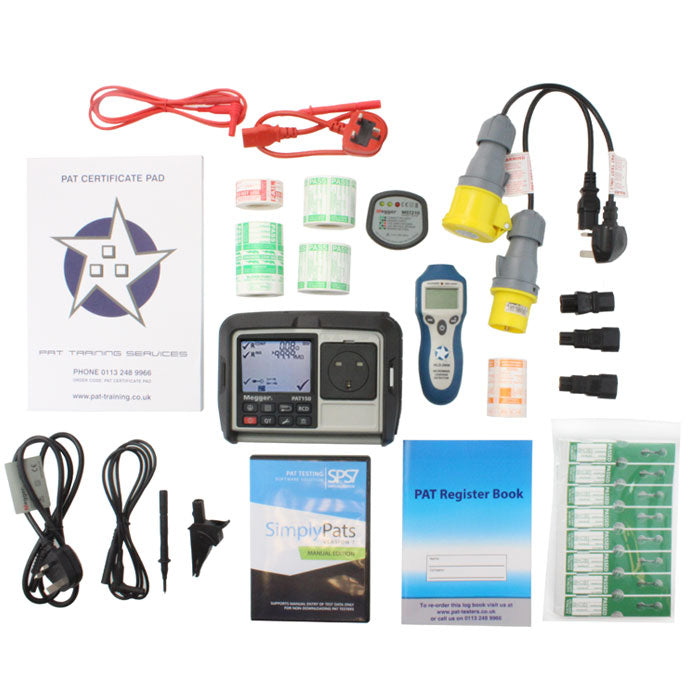

Megger PAT150R Kit C Includes:

  • Megger PAT150 PAT Tester
  • SimplyPATs Manual Software
  • 2 x 500 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Labels
  • 250 Tuff Tag Pass Labels
  • PAT Certificate Pad
  • PAT Register Book
  • IEC Adaptor Kit
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Megger MST210 Socket Tester
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels

For more information on the Megger PAT150R PAT Tester please click here.

Kit A Kit B Kit C
Megger PAT150R PAT Tester
SimplyPATs Version 7 Manual Software
2 x 500 Pass Labels
200 Fail Labels
250 PassWrap Labels
PAT Register Book
PAT Certificate Pad
IEC Cloverleaf Adaptor
IEC Adaptor Kit
110V Appliance Adaptor
110V Extension Lead Adaptor
Microwave Leakage Detector
150 Microwave Emission Labels
Megger MST210 Socket Tester

Specification

Environmental Conditions

  • Operating ambient: 20°C
  • Humidity: Nominal humidity

Continuity Test

  • Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
  • Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
  • Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
  • Resistance resolution: 10 mΩ
  • Display range: 0.01 to 19.99Ω
  • Continuity test nulling: up to 9.99 Ω
  • Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec

Insulation Test

  • Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
  • Short circuit/charge current: < 2mA dc
  • Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
  • Resolution: 0.01 MΩ
  • Display range: 0.10 MΩ to 99.99 MΩ
  • Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec

Substitute Leakage Test

  • Leakage current: Accuracy ± 5% ± 3 digits
  • Test frequency: Nominal mains frequency 50Hz
  • Test voltage: < 50V ac
  • Resolution: 0.01mA
  • Display range: 0.10 to 19.99mA
  • Test duration: User selectable from 2 sec to 5 seconds
  • Reading corrected to 230V ac.

Touch Current Test

  • Test voltage: Nominal mains 230 V ac
  • Test frequency: Nominal mains 50 Hz
  • Test accuracy: ± 5% ± 3 digits
  • Resolution: 0.01 mA
  • Display range: 0.10 to 3.99 mA
  • Test duration: User selectable from 2 sec to 5 sec

SELV Device Test

  • Test voltage: 0 to 300 V ac
  • Measurement accuracy: ± 3% ± 3 digits
  • Resolution: 0.1 V ac
  • Display range: 0.1 to 300 V ac

Extension Lead Test

Test includes Insulation and Bond tests.

  • Test voltage: 5V
  • Polarity: Lead OK, Live/neutral shorted, Live/neutral reversed, Live/neutral open circuit

Portable RCD Test

  • Test voltage: Nominal mains 230 V
  • Test frequency: 50Hz
  • Test current accuracy: +2% to +8% (1 x I, 5 x I)
  • Trip time accuracy: ±1% ± 1ms
  • Trip time resolution: 0.01ms
  • Display range: 0 to 200ms (1 x I), 0 to 40ms (5 x I)

Mains Supply Test

  • Frequency measurement range: 50 Hz
  • Test voltage: 40 to 300V ac
  • Accuracy: ± 3% ± 3 digits
  • Resolution: 0.1Vac
  • Display range: 40 to 300V ac

Circuit Test

Carried out automatically, not available to user.

  • Test voltage: 5V
  • Test frequency: Nominal Mains 50 Hz
  • Test current: < 100mA short circuit

Safety

  • Instrument designed to IEC 61010-1: 2012
  • Test leads designed to IEC 61010-031: 2005
  • 300 volts to Earth Category II
  • Mains fuse protection to 250 volts rms ac

EMC

  • Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.

Environmental

  • Operating temperature range: 0°C to +40°C
  • Storage temperature range: -20°C to +60°C
  • Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
  • Maximum altitude: 2,000m to full safety spec.
  • IP rating: IP40 (with front cover closed)

General

  • Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
  • Weight (PAT150 Only): 1300g
  • Weight (Shipping): 2795g / 2975g for PAT150R
  • Dimensions: 203 x 148 x 78mm
  • Megger Part Number: 1003-064 / 1003-428 (rechargeable model)

Supplied Accessories

Megger PAT150R Kit C comes with:

  • Megger PAT150 PAT Tester
  • SimplyPATs Manual Software
  • 2 x 500 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Labels
  • 250 Tuff Tag Pass Labels
  • PAT Certificate Pad
  • PAT Register Book
  • IEC Adaptor Kit
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Megger MST210 Socket Tester
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
