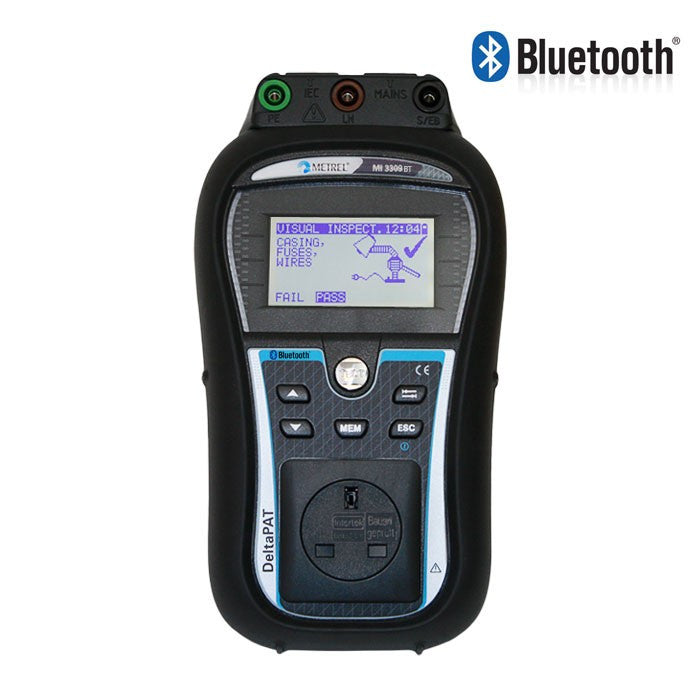

Metrel DeltaPAT BT Kit B

  • Integrated Bluetooth allows wireless data transfer
  • Metrel Android PATLink Smartphone App allows analysis and reporting
  • PATLink Pro PC Software for data transfer and reports

£768.00 EXC. VAT

IN STOCK

Description

The Metrel DeltaPAT Tester benefits from both battery powered and mains powered operation, allowing differential & touch leakage testing and has integrated P/RCD technology that prevents the mains RCD from tripping while measurements are being taken. In addition the DeltaPAT has inputs for PAT testing fixed appliances.

Bright red and green lights and a clear display offer quick recognition of Pass/Fail status along with the test value, while a built-in charger and rechargeable batteries mean the MI3309BT DeltaPAT is fully equipped for a full day of portable appliance testing.

Complete with a memory that stores up to 1500 test results with parameters and Metrel PATLink Pro software for downloading and importing PAT test data into reports, the Metrel DeltaPAT tester is ideal for testing large numbers of electrical appliances in a range of environments.

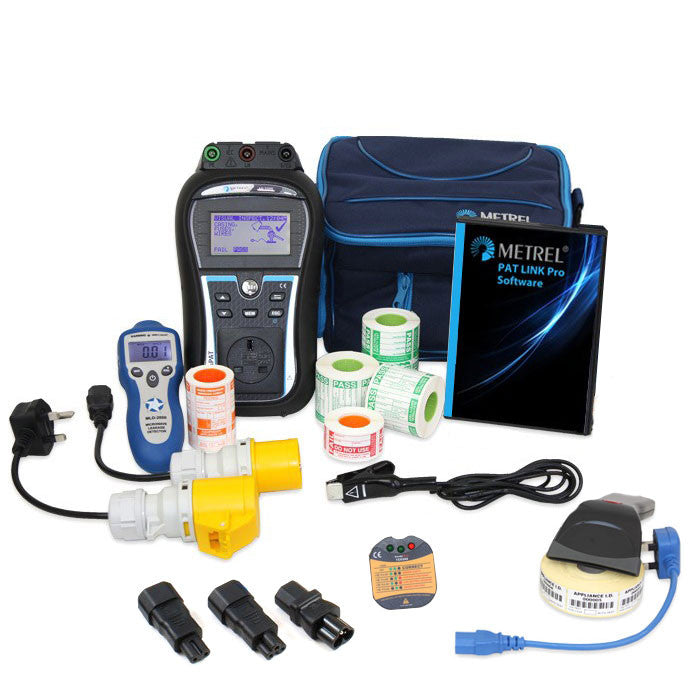

Metrel DeltaPAT BT Tester Kit B Includes:

  • Metrel MI3309BT DeltaPAT Tester (complete with IEC Test Lead, 3 x Test Leads, Crocodile Clips & Probes, USB & RS232 Download Leads, 6 x Rechargeable Batteries, DeltaPAT Instruction Manual, Calibration Certificate and Carry Case).
  • Metrel PATLink Pro PAT Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Metrel TEK989 Socket Tester
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels

For more information on the Metrel MI3309BT DeltaPAT please click here.

  Kit A Kit B Kit C
Metrel MI3309BT DeltaPAT
PATLink Pro Software
PAT Testing DVD
Barcode Scanner
1000 Appliance ID Barcode Labels
Socket Tester
Microwave Leakage Detector
150 Microwave Emission Labels
Metrel Bluetooth Printer
Metrel aPAT PAT Android App
250 Printer Labels
IEC Clover Leaf Adaptor
110V Appliance Adaptor
110V Extension Lead Adaptor
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels

Specification

Earth Continuity

  • Current: 200mA
  • Measuring Range: 0.00-1999 ohms

Insulation Resistance

  • Voltage: 250V or 500V DC
  • Measuring Range: 0.00-199.9 Mohms

Differential Leakage

  • Voltage: 230V AC
  • Measuring Range: 0.00-19.99mA

Touch Leakage

  • Voltage: 230V AC
  • Measuring Range: 0.00-7.0mA

Substitute Leakage

  • Voltage: 30V AC
  • Measuring Range: 0.00-20.0mA

P/RCD Testing

  • Currents: 10mA, 15mA, 30mA
  • Measuring Range: 0 ms - 300ms(½xI∆N) 0ms - 300ms(I∆N), 0ms - 40ms(5xI∆N)
  • Resolution: 0.1ms

Power Measurement

  • Voltage: 230V AC
  • Measuring Range: 0.00-4.00kVA

Voltage TRMS

  • Range: 80-300V
  • Overvoltage: CAT II/300V
  • Protection: Case IP40, Connectors IP20
  • Dimensions: 140 x 80 x 230mm
  • Weight: 1.2kg

Supplied Accessories

  • Metrel MI3309BT DeltaPAT Tester (complete with IEC Test Lead, 3 x Test Leads, Crocodile Clips & Probes, USB & RS232 Download Leads, 6 x Rechargeable Batteries, DeltaPAT Instruction Manual, Calibration Certificate and Carry Case).
  • Metrel PATLink Pro PAT Software
  • Metrel Barcode Scanner
  • 1000 Barcode Appliance ID Labels
  • Microwave Leakage Detector
  • 150 Microwave Emission Labels
  • IEC Adaptor Kit
  • 110V Appliance Adaptor
  • 110V Extension Lead Adaptor
  • Metrel TEK989 Socket Tester
  • 1000 Pass Labels
  • 200 Fail Labels
  • 250 PassWrap Cable Labels
