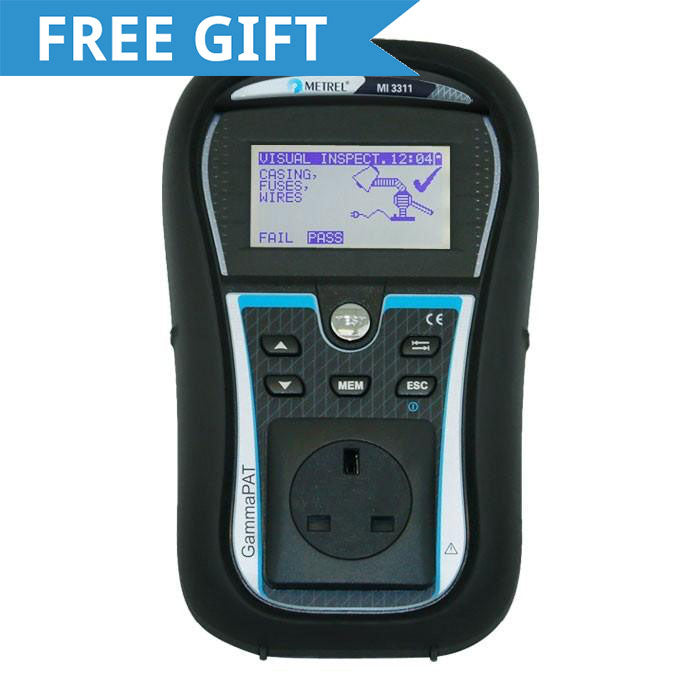

Metrel GammaPAT Lite PAT Tester

  • Accuracy ensured by integrated PAT checkbox
  • Novices benefit from help screens and advanced mode helps professionals
  • Memory capacity for up to 1700 test results

Description

Limited Lifetime Warranty

The Metrel GammaPAT Lite is a simple to use portable appliance tester that comes complete with a built in calibration checkbox so that users can check the ongoing accuracy of the GammaPAT tester in between calibrations.

The Metrel MI3311 PAT Tester can be operated in Simple Mode with users selecting to test Class I, Class II and IEC/Extension Leads or in Auto Mode which requires more appliance information, useful for calculation of resistance within longer leads. Suitable for entry-level and more advanced PAT engineers, the GammaPAT Lite is ideal for low to mid-range volume testing in domestic and commercial environments including schools and shops as well as testing office IT equipment for electrical safety.

Test results and Pass/Fail indication are clearly displayed on the bright screen with red and green LED lights providing a quick and simple visualisation of the test outcome. Rechargeable batteries and a built in charger make the Metrel MI3311 Gamma PAT Lite a fantastic choice for use on the road without the risk of the unit running out of power mid-test.

The GammaPAT Lite is further equipped with an inbuilt memory capable of storing up to 1700 test results which can have an appliance ID/description added for review and download using additional PAT software.

*This product qualifies for our exclusive Limited Lifetime Warranty. For more information please click here.

Key Features

  • Integrated PAT checkbox to check ongoing accuracy
  • Auto test sequences to speed up appliance testing
  • Rechargeable batteries with built-in charger
  • Help screens offer guidance to novice users
  • Upgradeable firmware if changes to the current regulations occur
  DeltaPAT GammaPAT Lite GammaPAT Pro
Earth Bond Test (200mA)
Insulation Test (250V, 500V)
Insulation Test (50V, 500V)
Differential Leakage Test
Substitute Leakage Test
Polarity Test
Internal Memory 1500 results 1700 results 1700 results
Downloadable Optional
Bluetooth
Compatible with Metrel Android App
Comes with PATLinks Pro Software

Specification

  • Earth Bond Continuity: Test current of 200mA
  • Insulation Test: 50V or 500V DC Measuring range: 0.1 - 19.99 Mohms
  • Substitute Leakage Test: Carried out at 40V DC
  • Insulation-S Test: Insulation resistance of isolated accessible conductive parts.
  • Substitute Leakage-S: Substitute leakage current of isolated accessible conductive parts
  • Polarity Test: IEC and Extension Lead internal wiring check.
  • Weight & Dimensions: 1kg - 230x140x80

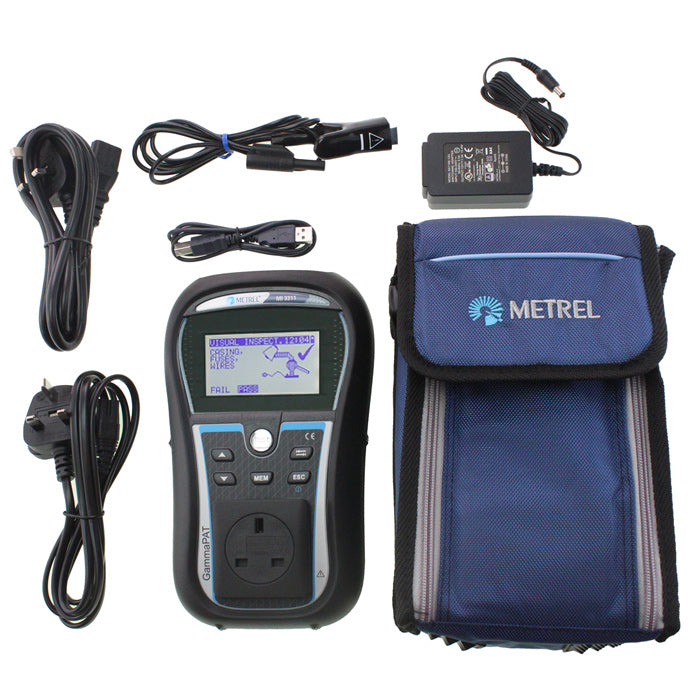

Supplied Accessories

The Metrel GammaPAT Lite comes with:

  • Earth bond test lead
  • 230V Extension lead adaptor
  • 6 x Rechargeable Batteries
  • Carry Case and strap
  • Calibration Certificate
  • Instruction Manual
  • 36 Month Warranty

Kit Options

The Metrel GammaPAT Lite PAT Tester is available in a range of kits:

Kit A Kit B
Metrel MI3311 GammaPAT Tester
Metrel PAT Testing DVD
Metrel TEK 989 Socket Tester
Microwave Leakage Detector
150 Microwave Emmisions Labels
PAT Register Book w/ Frequency of Inspection
PAT Certificate Pad
IEC Clover Leaf Adaptor
IEC PAT Adaptor Kit
110V Appliance Adaptor
110V Extension Lead Adaptor
1000 Pass Labels
200 Fail Labels
250 PassWrap Cable Labels
Earth Test Lead
230V Extension Lead Adaptor
Calibration Certificate
GammaPAT Carry Case
6 x Rechargeable Batteries
