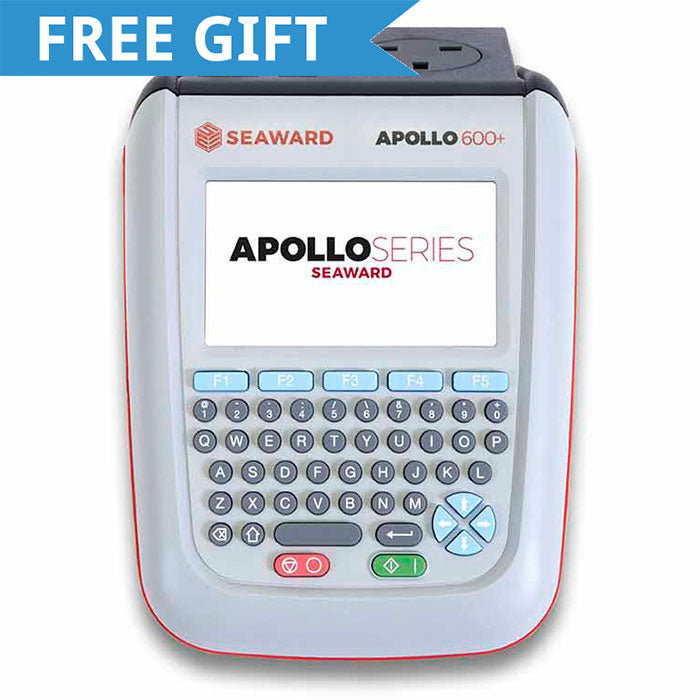

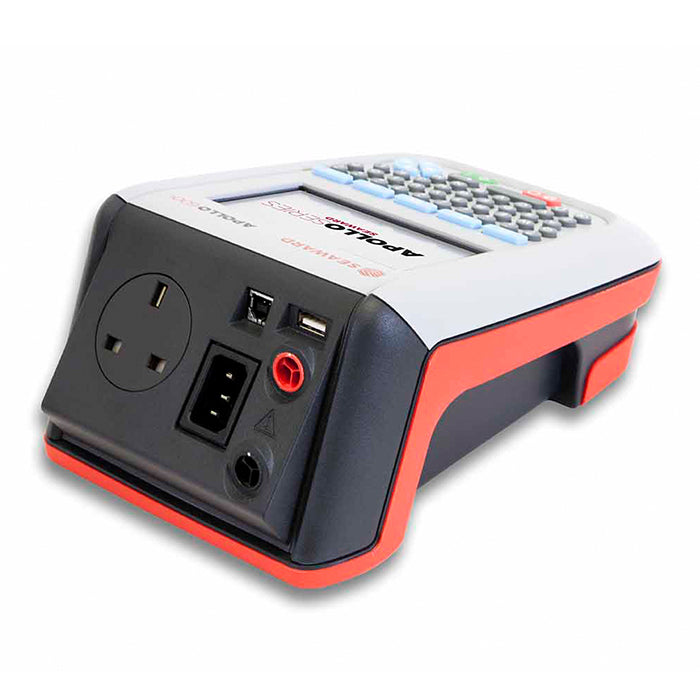

Seaward Apollo 600 PAT Tester & Risk Assessment Tool

  • In-built risk assessment tool complies to IET Code of Practice
  • Digital camera picks up visible evidence of hazards and risk factors
  • Memory storage capacity for 50,000 records and 2000 images

Description

The Seaward Apollo 600 represents the latest development in health and safety management by incorporating risk assessment tools alongside the capabilities you would expect from a top of the range PAT Tester, thus enabling the user to comply with the 4th Edition of the IET Code of Practice and the latest guidance from the HSE.

Offering a fully comprehensive array of tests, including earth leakage, touch current and RCD trip time, the Apollo 600 can ensure electrical safety of all 230V and IT equipment along with basic testing for 110V appliances. The Seaward Apollo 600 can even test 3-phase equipment and point to point testing of fixed appliances. The unit can also be used when plugged in to recharge the batteries, while data transfer is possible to smart phones, tablets and PCs via additional software.

To further enhance the PAT testing process, the Seaward Apollo has a built-in risk assessment tool based on the latest IET Code of Practice which allows users to calculate individual re-test dates based on the risk associated with using each appliance. This innovative and unique feature provides users with the means to accurately schedule and manage the electrical safety procedures within their workplace. This also prevents unnecessary or overzealous testing.

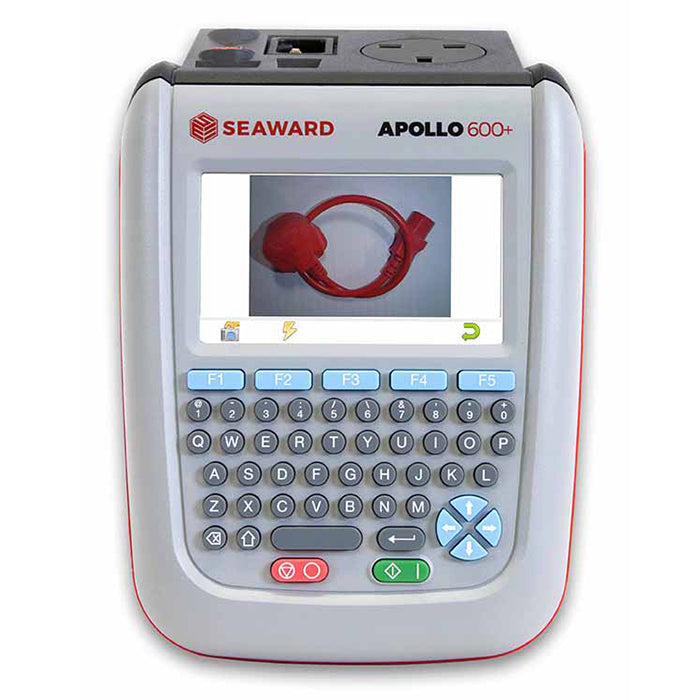

The inclusion of a built-in digital camera means that images can be taken and stored directly on your tester linking the image with the test results, appliance data and risk assessments, offering full traceability.

The Apollo 600 can store up to 2000 images that can be tagged to assets and up to 50,000 test records. No other tester on the market provides such a thorough method of documenting each stage of the safety management process and boasts such a massive storage capability.

Completing this all-in-one health and safety solution is the universal risk assessment tool which allows any potential hazards within the workplace to be recorded along with risk scores and the planning of corrective actions should any problems arise. Built-in test and inspection reports cover such assessments as fire alarm systems and emergency lighting checks, with the option to add more reports as and when they are required.

The Seaward Apollo 600 is compatible with the new Seaward PATGuard 3 software allowing users to keep track of test history and produce detailed risk assessment reports and PAT certificates. Furthermore, accessories including a Seaward Bluetooth scanner and Seaward Test n’ Tag Elite printer are available to speed up the process of asset recognition and labelling.

Key Features

  • RCD tests
  • Load testing
  • Leaklage/touch current measurement
  • QWERTY keyboard
  • Inbuilt digital camera
  • Bluetooth wireless connectivity
  • Risk assessment capability
  • Memory: 50,000 recordings, 2000 images
  Apollo 400 Apollo 500 Apollo 600
Battery & mains powered
Colour Screen & QWERTY keypad
Large internal memory 2000 records 10,000 records 50,000 records + 2000 images
Scanner & printer compatible
Password controlled user accounts
Clone facility to set up multiple testers
Checkbox supplied as standard
Comprehensive electrical safety test features
Point to point measurement (Rpe & IR) ✔ (Optional Accessory Required)
User configurable electrical test/visual inspection sequences 25 100 100
User set sites & locations 50 50 100
Risk based retest period calculator
User definable comments lines against test records
Configurable checklists for any workplace test or inspection (user tests)
On-board camera
Universal risk assessment
Health & safety certificates
Bluetooth connectivity
Remote data transfer via mobile device ✔ (Android Only) ✔ (Android Only) ✔ (Android & iOS)
Download to PC via USB cable
Upload previous results to tester for retest
Data transfer via USB flash drive

Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range: 0.01 – 19.99Ω
  • Pass Value: User Defined

Insulation Resistance

  • Test Voltage: 500V / 250V DC @ 1mA nominal
  • Display Range: 0.01MΩ - 19.99MΩ
  • Pass Value: User Defined

IEC Lead Test

  • Test voltage: 5V AC nominal
  • Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

  • Test Voltage: Supply voltage, maximum load current 16A
  • Display Ranges: 0.01mA to 19.99mA
  • Pass Value: User Defined

Touch Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Display Range: 0.00 – 3.50mA
  • Pass Value: User defined

Load Power/Current

  • Test Voltage: 230V +10%, -15%, maximum load current 16A
  • Test Duration: Programmable up to a maximum of 255s depending on load
  • Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A

Alternative Leakage Current

  • Test Voltages: >25Vac <50Vac
  • Display Range: 0.00mA to 19.99mA
  • Pass Value: User Defined

RCD Test

  • Test Voltage: 230V +10%, -15%
  • Test Current: 15mA / 30mA rms sinusoidal
  • Display Range: 0ms - 2000ms
  • Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

  • Voltage Range: 207V – 253Vac
  • Indicates configuration of voltage potential: Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

  • Memory size: 50,000 records & 2000 photos
  • Weight: 1.5kg
  • Dimensions: 230mm x 150mm x 100mm
  • Power Source: Mains or rechargeable battery pack

Supplied Accessories

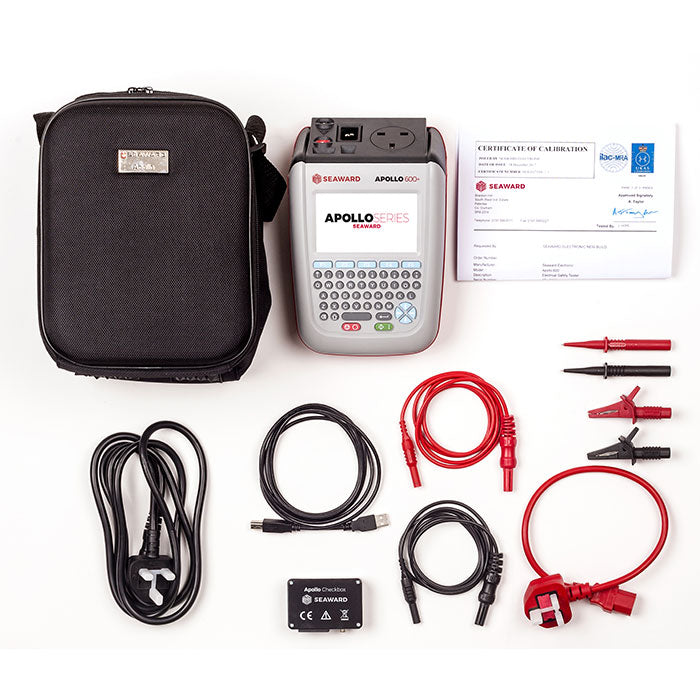

The Seaward Apollo 600 comes with:

  • Apollo Checkbox
  • 2 x Test Leads and Probes with Crocodile Clips
  • 0.5m IEC Lead
  • 110V Appliance Adaptor
  • Mains Power Lead
  • USB Download Cable
  • 30 Day Free Trial of PATGuard 3 Software
  • Quick start Guide
  • Carry Case

Kit Options

The Seaward Apollo 600 PAT Tester is available in a range of kits:

  PATGuard Elite Kit Pro Printer Kit (380A963) Pro Printer + PATGuard Elite Kit (380A965) Elite Printer Kit (380A950) Elite Printer + PATGuard Elite Kit (380A961)
Seaward Apollo 600 + Included Accessories
Seaward PATGuard Elite 3 1-Year (Upgradable)   1-Year (Upgradable)   1-Year (Upgradable)
Seaward Test n' Tag PRO Printer
Seaward Test n Tag ELITE 2 Printer
Seaward Bluetooth Barcode Scanner
Seaward Apollo Carry Case 71G109
110V Appliance Adaptor
110V Extension Lead Adaptor
IEC Adaptor Kit
1000 Pass Labels, 200 Fail Labels
& 250 Pass Wrap Labels


Videos





















Available For Hire

Available For Hire: £79 Per Week (exc. VAT)

Optional Extras:

  • Download service (£19) - Our download service saves you time by providing all your PAT testing results in a digital format of your choice. Simply return the hire tester and we'll email you the results asap.
  • Test n Tag Elite 2 Printer Hire (Free with label purchase) - The Seaward Test n Tag Elite 2 Printer is available to hire free of charge with this tester, providing compatible labels are purchased along with the hire. Test n' Tag Elite labels are available at £10.50+VAT per roll (approx. 135 labels).

Free Gifts - Receive 200 Pass and 200 Fail labels free when you hire a tester from PAT-Testers.co.uk.

Shipping - We are happy to arrange delivery & collection of hire equipment at a cost of £10 each way (optional).

Booking a PAT Tester with us is simple:

  1. Choose a tester from our hire fleet
  2. Decide the dates you need the tester
  3. Call us on 0113 248 9966 to book or click the button below
Enquire Now
