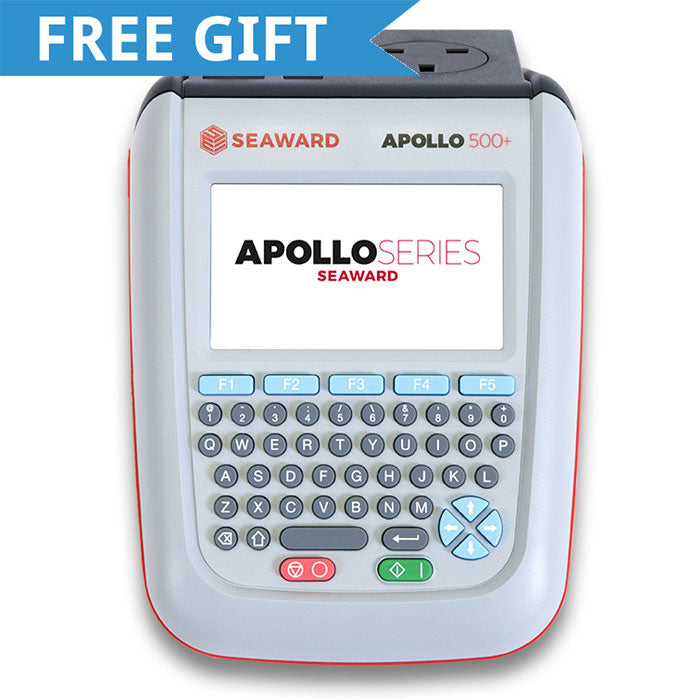

Seaward Apollo 500+ PAT Tester

  • Substantial internal memory stores up to 10,000 appliance records and PAT testing results
  • Compact lightweight design with intuitive QWERTY keyboard, USB and Bluetooth
  • Built-in Electrical Risk Assessment Tool calculates suggested risk-based retest periods

Description

The Seaward Apollo 500+ PAT Tester now has all-new firmware with an improved user interface and a database search function. Furthermore, the tester can now work with a Seaward Test n Tag Elite 2 Printer and Seaward scanner to print and read QR-coded PAT labels. As well as providing more information, QR codes can be scanned by a customer using a smartphone in order to find out full PAT test results and information. A new external battery pack now allows the user to switch the rechargeable battery in the field, thus preventing downtime.

The Apollo 500+ is brand new intuitive downloading PAT Testing device from Seaward that combines ease of use with a wide selection of high specification features. The Apollo 500+ is built with demanding PAT Testers in mind and is designed to speed up general testing on 230V, 110V appliances and IT equipment. A full firmware update improves the user interface and offers QR code capability and there is now also an external battery pack.

A main advantage to the Apollo 500+ is the introduction of a Risk based assessment tool. The tool is based on the latest IET Code of Practice and allows users to calculate individual re-test dates based on the risk associated with using each appliance. Alongside this feature the tester will perform a series of high end tests in accordance with the latest edition of the IET Code of Practice 4th Edition and the guidelines introduced by HSE (Health and Safety Executive).

The Seaward Apollo 500+ has all new firmware that provides a better user experience via an improved interface. This includes enhanced functions such as quicker navigation through results and a database search function. It is also possible to set customised access levels for different user profiles for added security.

New firmware also allows the Seaward Apollo 500+ to both print and scan QR codes with the aid of a Seaward Test n Tag Elite 2 printer and Seaward Bluetooth 2D Elite Barcode Scanner. QR codes provide the user with instant, extensive information on the appliance in question including asset ID, site, location, most recent test date and next scheduled test date. In addition, the end user can access this information easily by downloading the QR Data Viewer app to an Android or iOS smartphone.

An external battery pack allows the user to quickly exchange the rechargeable batteries in the field whenever required. This is a useful feature for professional PAT testing operatives as it allows them to continue working with minimal downtime.

Seaward continue their high reputation and have produced a small, lightweight tester that is easy to carry around. The tester is downloadable so you don't have to keep writing out PAT certificates during your working day. The Apollo 500+ can fit comfortably within the user’s hands allowing for one handed testing which can now be performed with ease. Despite the small size the tester comes complete with a full QWERTY keypad featuring five recognisable function buttons and a large high definition colour display. The large backlit display will benefit anyone who wishes to regularly perform and track complex tests in their entirety.

The Apollo 500+ matches design with functionality by storing 10,000 results along with USB and Bluetooth download and upload compatibility. The tester is designed to be used with Seaward PATGuard 3 software which allows a user to keep track of test history and produce PAT certificates and detailed risk assessment reports. PATGuard 3 is now compatible with PC, tablets and Smartphones.

Simple menu systems help you easily navigate to mains powered tests such as Touch Current, Earth Leakage or RCD Trip Time tests. The tester is even versatile enough to test 3 phase equipment and perform point to point testing on fixed appliances. This versatile tester can test off batteries or mains power ensuring you are never slowed down on larger jobs.

The Seaward Apollo 500+ PAT Tester has several recommended accessories including the Seaward Bluetooth Test n Tag Elite Printer and Seaward Bluetooth Scanner which are available to speed up the asset labelling and the recognition process.

The Seaward Apollo 500+ PAT Tester is a fast innovative Tester for users looking for versatility combined with simplicity.

Seaward part number: 380A928

Key Features

  • Plug and Play technology – Easy to navigate menu system designed to speed up testing.
  • Small lightweight PAT Tester - Designed to fit comfortably in the users hands
  • Advanced memory – Store up to 10,000 assets and download them via USB or wirelessly via Bluetooth.
  • Point to point testing on fixed appliances
  • QWERTY keyboard – Responsive keyboard with recognisable function buttons for fast record editing.
  • Test with complete compliance with the IET Code of Practice 4th Edition
  • Risk Assessment Tool – Enter the environment details and the Apollo 500 will recommend a retest date based on the equipment type and the environmental risks.
  Apollo 400+ Apollo 500+ Apollo 600+
Battery & mains powered
Colour Screen & QWERTY keypad
Large internal memory 2000 records 10,000 records 50,000 records + 2000 images
Scanner & printer compatible
Password controlled user accounts
Clone facility to set up multiple testers
Checkbox supplied as standard
Comprehensive electrical safety test features
Point to point measurement (Rpe & IR) ✔ (Optional Accessory Required)
User configurable electrical test/visual inspection sequences 25 100 100
User set sites & locations 50 50 100
Risk based retest period calculator
User definable comments lines against test records
Configurable checklists for any workplace test or inspection (user tests)
On-board camera
Universal risk assessment
Health & safety certificates
Bluetooth connectivity
Remote data transfer via mobile device ✔ (Android Only) ✔ (Android Only) ✔ (Android & iOS)
Download to PC via USB cable
Upload previous results to tester for retest
Data transfer via USB flash drive

Specification

Earth Continuity

  • Test Current: +/- 200mA DC
  • Display Range: 0.01 – 19.99Ω
  • Pass Value: User Defined

Insulation Resistance

  • Test Voltage: 500V / 250V DC @ 1mA nominal
  • Display Range: 0.01MΩ - 19.99MΩ
  • Pass Value: User Defined

IEC Lead Test

  • Test voltage: 5V ac nominal
  • Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

  • Test Voltage: Supply voltage, maximum load current 16A
  • Display Ranges: 0.01mA to 19.99mA
  • Pass Value: User Defined

Touch Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Display Range: 0.00 – 3.50mA
  • Pass Value: User defined

Load Power/Current

  • Test Voltage: Supply Voltage, maximum load current 16A
  • Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
  • Display Range: 0.00kVA – 4.00kVA 0.00A – 16.00A

Alternative Leakage Current

  • Test Voltages: >25Vac <50Vac
  • Display Range: 0.00mA to 19.99mA
  • Pass Value: User Defined

RCD Test

  • Test Voltage: 230V +10%,-15%
  • Test Current: 30mA / 150mA rms sinusoidal
  • Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
  • Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

  • Voltage Range: 207V – 253V AC Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

  • Memory size 10,000 records
  • Weight 1.5kg
  • Dimensions 230mm x 150mm x 100mm
  • Power Source Mains or Rechargeable battery pack

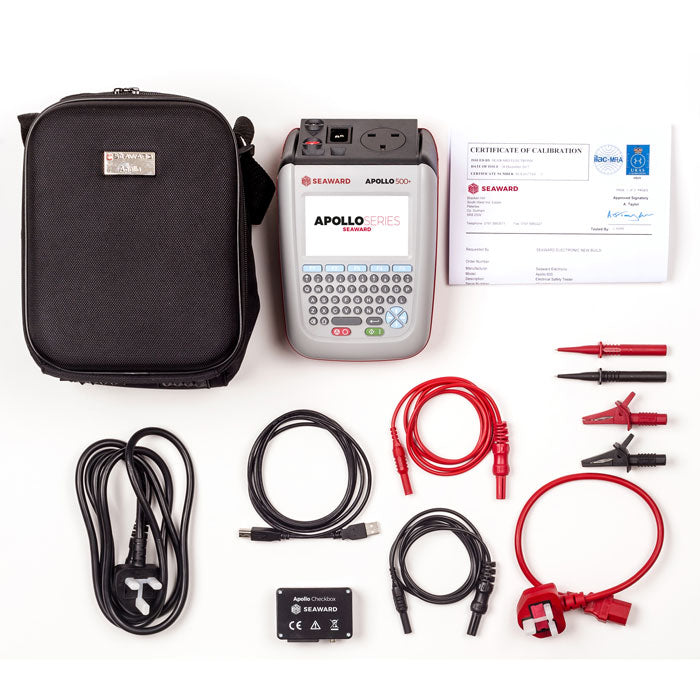

Supplied Accessories

The Seaward Apollo 500 PAT Tester comes with:

  • Apollo Calibration Checkbox
  • UKAS Calibration Certificate
  • 2 Year Warranty (requires product registration)
  • Quick Start Guide
  • 30 Day Free Trial of PATGuard 3 Software
  • Mains Power Lead
  • 2 x Test Leads with Probes/Croc Clips
  • 0.5m IEC Lead
  • USB Download Cable
  • Carry Case

Kit Options

The Seaward Apollo 500+ is available in a range of kits:

  PATGuard Elite Kit Pro Printer Kit (380A964) Pro Printer + PATGuard Elite Kit (380A966) Elite Printer Kit (380A960) Elite Printer + PATGuard Elite Kit (380A962)
Seaward Apollo 500+ Included Accessories
Seaward PATGuard Elite 3 1-Year (Upgradable)   1-Year (Upgradable)   1-Year (Upgradable)
Seaward Test n' Tag PRO Printer
Seaward Test n Tag ELITE 2 Printer
Seaward Bluetooth Barcode Scanner
Seaward Bluetooth QR and Barcode Scanner
Seaward Apollo Carry Case 71G109
110V Appliance Adaptor
110V Extension Lead Adaptor
IEC Adaptor Kit
1000 Pass Labels, 200 Fail Labels
& 250 Pass Wrap Labels
